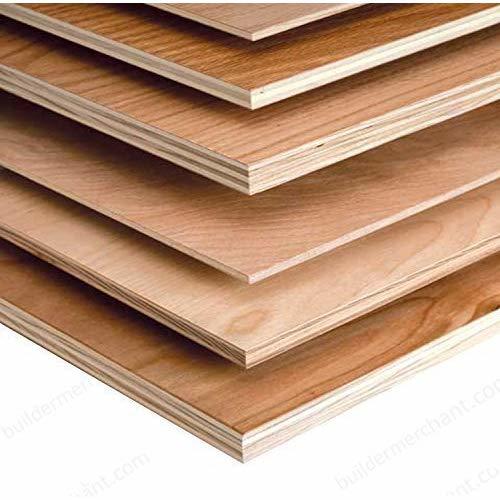

Marine plywood
It is maintained flrom selected timbers bonded with high quality resorcinol Phenol
Formaldehyde Resin. It is pressed under proper temperature and high pressure and
treated in a vaccum pressure impregnation plant with specific preservatives as per IS
5539:1969. Our Marine Plywood can withstand unfavourable climatic conditions,
alternte drying and wetting. Moreover, it is safe against marine organisms and wood
borers. It can also withstand 108hrs boiling at 100 C temperature without showing any
signs of veneers seperation / de-lamination.
Applications: Maintenance and repair of Marine and river crafts, the interior of ships and liners, heat exchanger, cooling tower, public hoarding, signboards, display boards, etc. tanks for
liquid chemicals, portable cabins, and shelters that are exposed to severe conditions,
structural applications.
Test Result
| S.NO.TEST | I.S.I REQUIREMENT | TEST RESULT |
|---|---|---|
| 1. Moisture Content | 5-15% | 7.5% |
| 2. Glue Shear Strength in Dry Condition | a) Individual Average Min. 1100 Newton b) Average Min. 1100 Newton 1350 Newton | 1400 Newton 1590 Newton |
| 3. Glue Shear Strength in Wet Condition | a) Individual 800 Newton b) Average Min. 1000 Newton | 1080 Newton 1360 Newton |
| 4. Glue Shear Strength in Mycological Test | a) Individual 800 Newton b) Average Min. 1000 Newton | 1090 Newton 1350 Newton |
| 5. Tensile Strength a) Parallel to grain direction b) Right angle to grain direction c) Sum of both directions | 42.0N/mm2 25.0N/mm2 84.5N/mm2 | 645 KN/M2 395 KN/M2 1040 KN/M2 |
| 6. a) MOR N/MM2 b) Parallel to grain c) Perpendicular to grain | Avg./Min50/45 30/27 | 60/5540/35 |
